Choosing between a sliding gate and a cantilever gate depends mainly on ground conditions, available space, foundation requirements, maintenance needs and gate configuration.
A standard sliding gate moves along a ground-mounted track, making it relatively simple to install and suitable for many residential, commercial and industrial applications. A cantilever gate is suspended above the ground and supported by rollers and posts, making it more suitable for uneven surfaces, gravel, debris-prone areas or locations where a ground track is impractical.
Neither system is universally better. The appropriate solution depends on the site, gate size, available side clearance, operating frequency and installation requirements.
- Sliding gates move horizontally along a ground-mounted track
- Cantilever gates are suspended above the ground using rollers and supporting posts
- Sliding gates generally require less lateral space along the fence line
- Cantilever gates require additional space for the counterbalance section
- Sliding gates depend on a level, clean and stable ground track
- Cantilever gates can operate without a track across the driveway
- Sliding gate installation generally requires a continuous track foundation
- Cantilever systems require stronger support posts and a robust localised foundation
- Sliding gates can be suitable for heavy-duty residential, commercial and industrial applications
- Cantilever gates can be useful where ground conditions make conventional tracks difficult
- Both systems can use motors, photocells, safety edges, loop detectors and access control
- Professional installation is recommended for automated gate systems
How Does a Sliding Gate Differ From a Cantilever Gate?
Both systems provide horizontal gate movement, but their mechanical support systems are different.

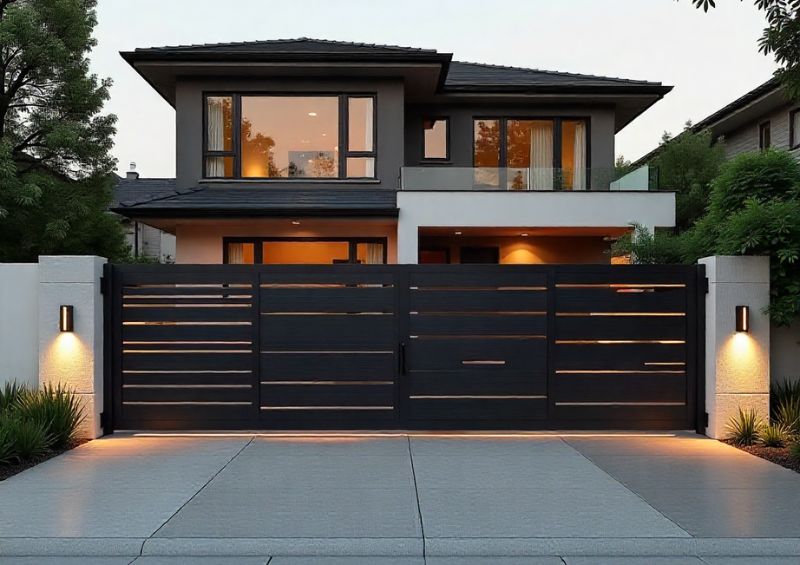

A sliding gate normally rests on wheels that travel along a ground-mounted steel track. The gate motor drives a rack attached to the gate, allowing the gate to move parallel to a fence or wall.
A cantilever gate does not use a track across the driveway. Instead, the gate is supported by roller assemblies mounted to structural posts on one side of the opening. The gate extends beyond the opening to create the counterbalance needed for suspended movement.
How Does Sliding Gate Automation Work?
In a typical sliding gate automation system, the motor engages with a rack mounted along the gate. The gate moves along its track while the wheels transfer the gate’s weight to the foundation. For a more detailed explanation of how these systems operate, see our guide to How Do Automated Sliding Gates Work?
Because the system depends on ground contact, the track must remain clean, level and properly aligned. Dirt, leaves, stones and other debris can interfere with smooth movement and increase wear.
How Does a Cantilever Gate Work?
A cantilever gate uses rollers fixed to supporting posts rather than wheels travelling across a ground track.
The gate’s extended tail acts as a counterbalance, allowing the main gate section to move through the opening without touching the ground. This makes the system useful for uneven, muddy or debris-prone surfaces.
What Are the Pros and Cons of Sliding Gate Automation?
Sliding gate automation has a relatively straightforward mechanical design, which can make installation and automation easier for many standard applications.
What Are the Advantages of Sliding Gates?
- Simple mechanical design
- Suitable for many residential applications
- Can support heavy gate panels
- Efficient use of space along the fence line
- Generally lower initial installation complexity
- Suitable for commercial and industrial applications
- Well suited to flat and stable ground conditions
The gate’s weight is distributed along the track, allowing the system to support substantial gate panels when the foundation, wheels and motor are correctly specified.
What Are the Disadvantages of Sliding Gates?
The main limitation is the ground track.
The track can collect:
- Dirt
- Leaves
- Stones
- Mud
- Other debris
Poor drainage, ground movement or settlement can also affect track alignment and increase wear on wheels and motor components. A continuous and properly level foundation is therefore important.
What Are the Pros and Cons of Cantilever Gate Systems?
Cantilever gates eliminate the need for a ground track across the driveway, which can provide practical advantages in difficult ground conditions.
What Are the Advantages of Cantilever Gates?
- No ground track across the driveway
- Less affected by surface debris
- Suitable for uneven ground
- Useful for gravel driveways
- Suitable for areas with poor drainage
- Can operate without rolling contact with the ground
- Can reduce track-related maintenance requirements
This design can be particularly useful for rural properties, industrial yards and sites where keeping a ground track clean and level would be difficult.
What Are the Disadvantages of Cantilever Gates?
The primary limitation is space.
The gate must extend beyond the clear opening to provide the counterbalance section. This means the property needs sufficient lateral space on one side of the entrance.
Cantilever systems also require stronger supporting structures and heavier frames, which can increase material and foundation requirements.
What Are the Installation Differences Between Sliding and Cantilever Gates?
The biggest installation differences involve the foundation, space requirements, structural support and gate hardware. Proper planning should consider how the gate is installed, operated, maintained and safely managed throughout its lifecycle. Safe Work Australia recommends considering these factors when managing risks associated with plant installation and operation 1Safe Work Australia — Plant: Managing risks. Date of access on 30/09/2026↓
What Foundation Does a Sliding Gate Need?
A sliding gate normally requires a continuous concrete foundation along the gate’s travel path.
The track must be:
- Level
- Properly aligned
- Structurally supported
- Suitable for the expected gate load
- Maintained to prevent debris accumulation
Any settlement or alignment problem can affect the movement of the gate. For installers, foundation construction, track alignment and motor positioning are also important when planning an automated system. Our Automatic Sliding Gate Motor Selection & Installation Guide covers these installation considerations in greater technical detail.
Foundation stability and installation conditions should be assessed as part of the overall system design rather than treated as separate considerations. Safe Work Australia recommends considering how plant can be safely erected and installed and how it can be maintained and repaired throughout its lifecycle 2Safe Work Australia — Safe design: Managing risks. Date of access on 30/09/2026↓
What Foundation Does a Cantilever Gate Need?
A cantilever gate requires a robust foundation beneath its supporting roller posts.
Unlike a sliding gate, the foundation is concentrated around the support structure rather than extending continuously across the driveway. However, the supporting structure must handle the weight and dynamic forces generated by the cantilevered gate.
How Much Space Does Each Gate System Require?
Space planning is an important part of gate selection.
Where Does a Sliding Gate Need Space?
A sliding gate needs enough fence-line space for the entire gate panel to move clear of the entrance.
This can make sliding gates suitable for properties where side clearance is available but the driveway or ground area needs to remain relatively compact.
Where Does a Cantilever Gate Need Space?
A cantilever gate requires additional space beyond the clear opening for its counterbalance section.
This can make the system less practical where the side boundary is tightly constrained, even though the driveway itself does not require a ground track.
How Do Motor and Hardware Requirements Differ?
Both systems can use similar automation components, including motors, control boards and safety devices.
However, the mechanical demands placed on the gate structure are different.
Motor selection should consider:
- Gate weight
- Gate length
- Operating frequency
- Gate configuration
- Mechanical resistance
- Site conditions
- Supporting structure
Motor selection should consider gate weight, gate length, operating frequency, gate configuration, mechanical resistance, site conditions and supporting structure. For a more detailed guide to selecting automation equipment, see our Technical Guide to Contractor-Grade Sliding Gate Motors
Cantilever gates can place greater loads on their supporting roller assemblies and structural posts, so the overall system should be assessed rather than selecting a motor based only on gate weight.
Professional installation is recommended when automation and structural requirements need to be coordinated. Safety devices are also an important part of an automated gate installation. Homeowners and installers can review our guide to Gate Safety Sensors and Standards when planning the safety system.
How Do Maintenance Requirements Compare?
Maintenance requirements differ mainly because the two systems use different mechanical support arrangements.
What Maintenance Does a Sliding Gate Need?
Sliding gate maintenance should focus on:
- Cleaning the ground track
- Inspecting wheels
- Checking rack alignment
- Inspecting motor mounting
- Checking track alignment
- Removing debris
- Monitoring unusual noise or resistance
Track condition is particularly important because obstructions can directly affect gate movement. Regular inspection is also important for identifying track, roller and motor issues before they affect normal operation. See our guide to Sliding Gate Automation Control Boards Explained for additional information about the components that control automated gate movement and safety functions.
What Maintenance Does a Cantilever Gate Need?
Cantilever gate maintenance focuses more heavily on:
- Roller assemblies
- Bearings
- Structural posts
- Supporting foundations
- Alignment
- Lubrication where applicable
- Signs of structural movement
Although there is no ground track to collect debris, movement in the supporting posts can affect the entire gate mechanism.
How Do Cost and Long-Term Value Compare?
Initial installation costs can differ because of the structural requirements of each system.
Is a Sliding Gate More Cost-Effective to Install?
Sliding gate automation generally has simpler construction and installation requirements, particularly where a suitable flat foundation and fence-line space already exist.
The main ongoing consideration is track maintenance.
When Can a Cantilever Gate Be Worth Considering?
Cantilever systems generally involve greater structural requirements and can have higher upfront costs.
However, eliminating the ground track can be useful where debris, poor drainage, uneven ground or difficult maintenance conditions would make a conventional sliding gate less practical.
Sliding Gate vs Cantilever Gate Comparison Table
| Factor | Sliding Gate | Cantilever Gate |
|---|---|---|
| Movement | Runs along a ground track | Suspended above the ground |
| Ground Track | Required | Not required |
| Foundation | Continuous track foundation | Localised foundation for support posts |
| Side Space | Requires fence-line clearance | Requires additional counterbalance space |
| Ground Conditions | Best on flat, stable surfaces | Suitable for uneven or difficult surfaces |
| Debris | Track can collect debris | Less affected by ground debris |
| Drainage | Poor drainage can affect track | Less dependent on driveway surface |
| Structural Requirements | Track and foundation support | Strong posts, rollers and foundation |
| Maintenance | Track, wheels, rack and motor | Rollers, bearings, posts and structure |
| Initial Complexity | Generally simpler | Generally more complex |
| Heavy Gates | Suitable when correctly designed | Suitable when structure is correctly designed |
| Residential Use | Common | Suitable where site conditions require it |
| Commercial Use | Common | Suitable for larger or challenging sites |
| Industrial Use | Common | Suitable for demanding environments |
| Automation | Motor, rack and safety devices | Motor, rack and safety devices |
| Main Consideration | Track and available fence-line space | Counterbalance space and support structure |
Swing Gate Automation Solutions
For reliable automated gate performance, Digital Home Systems can support customers in identifying suitable Swing Gate Automation solutions based on gate configuration, access requirements, site conditions and operating requirements.
Both standard sliding gates and cantilever systems can be automated, but the automation equipment should be matched to the mechanical characteristics of the gate rather than selected independently from the gate structure.
For homeowners, installers and property managers, assessing the gate, foundation, available space and safety requirements before installation can help create a more reliable automation system.
Selecting between a sliding gate and cantilever system requires more than comparing the initial purchase price.
Important considerations include:
- Available installation space
- Ground condition
- Foundation requirements
- Gate dimensions and weight
- Operating frequency
- Environmental exposure
- Maintenance requirements
- Safety equipment
- Access control requirements
- Motor specifications
- Future automation upgrades
- Professional installation requirements
Experienced installers can assess these factors together and determine whether the site’s physical conditions are suitable for a particular gate configuration.
FAQs
A sliding gate moves along a ground-mounted track, while a cantilever gate is suspended above the ground using rollers and supporting posts
No. A cantilever gate is supported by roller assemblies mounted to structural posts and does not require a track across the driveway
Cantilever systems can be suitable for uneven, gravel or debris-prone surfaces because the gate does not rely on a ground track
Sliding gates can require more track-related maintenance because dirt, leaves, stones and other debris can interfere with movement
Yes. A cantilever gate needs additional lateral space for the counterbalance section beyond the clear opening
Final Thoughts
Both sliding gates and cantilever gates can provide reliable automated access when correctly matched to the site.
Sliding gate automation offers a relatively straightforward design and can be suitable where there is a stable surface and enough fence-line space for the gate to travel. Cantilever systems eliminate the ground track and can be useful where uneven ground, debris or drainage make conventional tracks less practical.
The most important factors are not simply the gate type or initial cost, but the relationship between the gate structure, available space, foundation, operating conditions, automation system and maintenance requirements.
For the best result, assess the site conditions and gate configuration before selecting the automation system.
