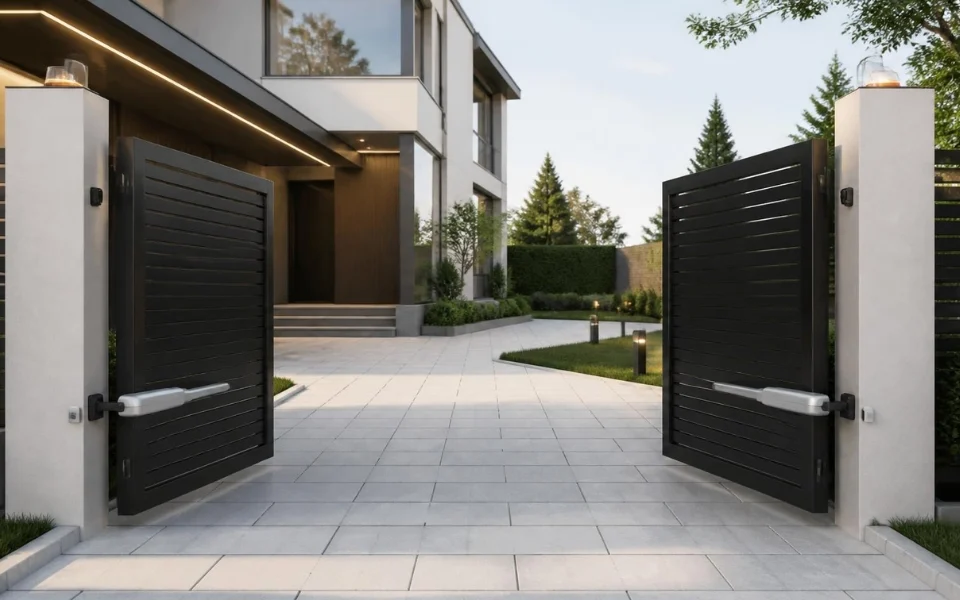

A properly balanced swing gate should move smoothly and predictably with minimal resistance when the automation motor is disengaged. If the gate is difficult to move manually, sags, scrapes, drifts, or requires excessive force, the underlying problem may be mechanical balance rather than the motor itself.
Correct balance reduces the load placed on Swing Gate Automation, helping minimise motor strain, gear wear, overheating, unnecessary energy consumption and premature component failure. The most important factors include hinge alignment, gate weight distribution, post stability, motor geometry, opening angle and structural condition.
Before increasing motor force or replacing the operator, the gate should be mechanically inspected and balanced first.
- A balanced swing gate should move smoothly by hand when the motor is disengaged
- Poor hinge alignment can create excessive friction and motor strain
- Gate posts must remain stable and correctly aligned to maintain the hinge axis
- Uneven gate weight distribution can increase the torque required from the motor
- Motor mounting position directly affects leverage and operating load
- Excessive opening angles can increase motor strain
- Wind can add significant load to large or solid swing gates
- Motor force settings should not be used to compensate for poor mechanical balance
- Regular hinge, post and gate alignment inspections help preserve balance
- A heavier motor does not solve an underlying gate balance problem
- Large, heavy or commercial gates should be assessed by a qualified installer
Why Does Swing Gate Balance Matter for Motor Strain?
Balancing a swing gate does not mean making it weightless. It means ensuring the gate’s weight is properly supported by its hinges and structure so it can move with minimal resistance.
When the motor is disengaged, a correctly balanced gate should be possible to open and close manually without excessive effort. It should not drop, bind, scrape against the ground, or accelerate unexpectedly during movement.
In Swing Gate Automation, balance directly affects how much force the motor must generate. An unbalanced gate forces the operator to compensate for gravity, friction and structural resistance, increasing the mechanical load on the system.
What Causes a Swing Gate to Become Unbalanced?
Several factors can contribute to an unbalanced gate:
- Excessive gate leaf weight
- Incorrect hinge positioning
- Worn or undersized hinges
- Gate sagging over time
- Uneven weight distribution
- Ground movement or post settlement
- Poorly reinforced gate posts
- Incorrect motor mounting geometry
- Excessive opening angles
- Wind loading on large or solid gates
- Structural modifications that change the gate’s centre of gravity
These issues can gradually increase motor strain even when the automation system itself is functioning correctly.
How Does Gate Geometry Affect Motor Load?
The relationship between the hinge, motor mounting point and gate leaf determines the leverage available to the operator.
If the motor is mounted at an unsuitable distance or height from the hinge, the system may require significantly more torque to move the gate. Incorrect geometry can also produce uneven movement and additional twisting forces.
For this reason, motor mounting dimensions should follow the manufacturer’s installation requirements rather than being estimated during installation. For workplace installations, equipment design and installation should also consider foreseeable hazards throughout the equipment lifecycle, including installation, operation, maintenance and repair. 1Safe Work Australia — Guide for Safe Design of Plant. Date of access on 30/09/2026↓
How Can You Tell If a Swing Gate Is Not Properly Balanced?
One of the simplest ways to identify a balance problem is to manually operate the gate with the automation system disengaged.
A properly balanced swing gate should feel stable and predictable throughout its movement.
What Should You Check During a Manual Movement Test?
Disengage the motor using the manual release mechanism and slowly move the gate through its complete opening and closing cycle.
Check whether:
- The gate moves smoothly
- Resistance remains relatively consistent
- The gate does not scrape the ground
- The gate does not suddenly drop
- The gate does not accelerate unexpectedly
- The gate does not drift open or closed
- The gate does not bind at particular points
- The hinges remain stable during movement
If the gate becomes significantly harder to move at a particular point, there may be an alignment, hinge or structural problem.
What Are Common Signs of Excessive Motor Strain?
Warning signs can include:
- Slow or uneven movement
- Excessive operating noise
- Frequent motor stopping and restarting
- Visible gate sagging
- The gate drifting when released
- Increasing operating temperature
- Premature gear wear
- Repeated safety or control faults
- Frequent automation breakdowns
Replacing the motor without correcting the underlying mechanical problem may only provide a temporary solution.
How Do Hinges, Posts and Gate Weight Affect Swing Gate Balance?
The physical structure of the gate determines how easily an automation system can operate it.
Hinges provide the primary pivot point, while gate posts maintain the hinge axis. If either component is incorrectly positioned, worn or unstable, the motor must overcome additional resistance.
Why Is Hinge Alignment Important?
Hinges should be vertically aligned and securely mounted. Even relatively small alignment problems can create twisting forces and increase friction during movement.
Worn hinges can also introduce play or uneven movement. Undersized hinges may not provide adequate support for a heavy gate, particularly when the gate is operated frequently.
For automated applications, hinges should be suitable for both the gate’s weight and its dynamic movement.
How Do Gate Posts Affect Balance?
A swing gate is only as stable as the structure supporting it.
If a gate post shifts because of settlement, inadequate foundations or structural movement, the hinge axis can change. This may cause the gate to lean, bind or move unevenly.
Before adjusting the automation system, inspect:
- Gate post alignment
- Concrete footings
- Visible cracks or settlement
- Hinge mounting points
- Post movement
- Gate-to-ground clearance
Structural problems should be corrected before attempting to compensate through motor settings.
Does Gate Weight Distribution Matter?
Total weight is not the only consideration. Where the weight is positioned also affects balance.
Decorative panels, heavy infill, solid sections or modifications on one side of a gate leaf can create uneven weight distribution. This can increase the force required at certain points during the swing.
Where practical, the gate should be designed or modified so that its weight is distributed as evenly as possible across the leaf.
How Should Motor Position and Opening Angle Be Set?
Motor installation geometry is one of the most important factors in Swing Gate Automation performance.
The motor must be installed at the correct position relative to the hinge and gate leaf. Manufacturer specifications normally define the required mounting dimensions to achieve the intended leverage and opening movement.
If a gate appears mechanically sound but the operator struggles under load, incorrect motor geometry should be investigated before assuming that the motor is faulty. For double-leaf installations, choosing the correct operator is also important, so see our guide to the best motor for double swing gates before selecting or replacing an operator
Why Does Motor Mounting Position Matter?
Mounting the motor too close or too far from the hinge can change the amount of torque required to move the gate.
Mounting height also matters. Incorrect positioning can introduce additional twisting forces and cause uneven movement.
If a gate appears mechanically sound but the operator struggles under load, incorrect motor geometry should be investigated before assuming that the motor is faulty.
How Does Opening Angle Affect Motor Strain?
The required opening angle influences the mechanical load placed on the operator.
Wider opening angles can require greater motor effort, particularly near the end of travel. If the gate opens farther than necessary, the operator may experience additional strain.
Where the site allows it, limiting the opening angle to the required access position can reduce unnecessary load.
In some installations, changing the swing direction or reducing the opening angle may be a practical way to improve performance.
Should Gate Stops Be Used?
Properly positioned gate stops help define the end position of the gate and prevent the motor from continuously pushing against structural resistance.
Some heavy or specialised gates may also benefit from counterbalance solutions, such as spring-assisted mechanisms or structural adjustments. These solutions should be selected based on the gate design rather than added as a substitute for proper installation.
How Can You Reduce Motor Strain After Balancing the Gate?
Once the mechanical condition of the swing gate has been corrected, the automation system can be fine-tuned.
How Should Motor Force Settings Be Adjusted?
Many Swing Gate Automation systems allow the installer to adjust motor force or torque through the control board.
The force should be set as low as practical while still allowing reliable operation under normal conditions.
Increasing force to compensate for:
- Poor hinge alignment
- Gate sag
- Structural resistance
- Incorrect motor geometry
- Excessive gate weight
is not a proper solution.
Force settings should be adjusted only after the mechanical causes of resistance have been addressed.
Can Safety Sensors Be Affected by Poor Gate Balance?
Photocells, safety edges and obstacle detection systems rely on predictable gate movement.
An excessively resistant or unstable gate may contribute to inconsistent movement and recurring safety-related faults. Correct mechanical balance allows the automation system and its safety devices to operate more predictably.
Safety systems should never be bypassed or adjusted simply to overcome mechanical problems. Safety systems should never be bypassed or adjusted simply to overcome mechanical problems. Where automated gates are used in workplaces, the equipment should be assessed and managed as part of the broader plant safety process, including identifying hazards and implementing appropriate risk controls. 2Safe Work Australia — Managing the risks of plant in the workplace. Date of access on 30/09/2026↓
How Does Wind Affect Swing Gate Automation?
A large or solid gate can behave like a sail in strong wind. Wind pressure can push against the gate while it is opening or closing, increasing the load on the motor.
The effect is particularly relevant for:
- Large driveway gates
- Solid-panel gates
- Exposed properties
- Coastal locations
- Commercial entrances
- Sites with frequent strong winds
Where applicable, installers should consider wind exposure when selecting the operator and determining appropriate force and operating settings.
How Can You Improve an Existing Swing Gate Without Replacing the System?
An existing swing gate does not necessarily need a complete automation replacement when motor strain develops.
What Balance Improvements Can Be Retrofitted?
Common retrofit measures include:
- Replacing worn hinges
- Realigning hinges
- Reinforcing gate posts
- Repairing or replacing unstable footings
- Redistributing gate weight
- Correcting gate sag
- Repositioning the motor
- Adjusting the opening angle
- Installing appropriate gate stops
- Reviewing motor force settings
A professional assessment is recommended before making structural changes, particularly for large or heavy gates.
When Should You Replace the Motor?
Motor replacement should be considered only after the mechanical condition of the gate has been assessed.
A larger motor may temporarily overcome resistance, but it does not correct poor balance. Oversizing the operator can also hide the original problem while placing additional stress on mechanical components.
The better approach is to balance the gate first and then select an operator according to the actual gate load, dimensions and operating frequency.
How Should Swing Gate Balance Be Maintained?
Correct balance is not necessarily permanent. Hinges wear, posts can move and gates can sag over time.
What Maintenance Should Be Performed?
Regular maintenance should include:
- Inspecting hinges for wear
- Lubricating hinges where appropriate
- Checking gate alignment
- Checking gate-to-ground clearance
- Inspecting post stability
- Checking mounting brackets
- Looking for visible sagging
- Checking motor mounting points
- Testing manual gate movement
- Inspecting the system after severe weather
Early detection can prevent a minor alignment problem from becoming a motor or structural failure.
When Should You Call a Professional?
Professional assistance is particularly appropriate for:
- Large or heavy gates
- Commercial installations
- High-traffic entrances
- Gates with structural damage
- Severe post settlement
- Major hinge problems
- Repeated motor failures
- Safety-critical installations
A qualified technician can assess the gate geometry, structural condition, load and automation requirements together rather than treating the motor as an isolated component.
Swing Gate Balance and Motor Strain Comparison Table
| Factor | Balanced Condition | Unbalanced Condition | Effect on Automation |
|---|---|---|---|
| Manual movement | Smooth and predictable | Heavy, binding or uneven | Increased motor load |
| Hinges | Aligned and secure | Worn or misaligned | Increased friction |
| Gate posts | Stable and correctly positioned | Shifted or unstable | Hinge-axis problems |
| Weight distribution | Relatively even | Heavy or uneven sections | Uneven torque demand |
| Motor geometry | Follows manufacturer requirements | Incorrect mounting position | Higher torque requirement |
| Opening angle | Appropriate for access | Excessively wide | Additional motor strain |
| Gate stops | Correctly positioned | Missing or poorly positioned | Increased end-of-travel load |
| Wind exposure | Considered during design | High exposure without compensation | Additional operating resistance |
| Force setting | Appropriate for actual load | Excessively high to overcome resistance | More wear and safety concerns |
| Maintenance | Regular inspection and adjustment | Neglected | Progressive imbalance and failure |
Swing Gate Automation Solutions
For reliable Swing Gate Automation, the automation system should be considered together with the gate structure, hinges, posts, geometry and operating conditions.
Digital Home Systems can support Swing Gate Automation planning by helping customers identify suitable automation solutions based on gate configuration, access requirements and installation conditions.
For double-leaf applications, choosing an appropriate operator based on the actual gate configuration is also important.
Balancing a swing gate requires more than selecting a motor with sufficient rated capacity.
A reliable installation should consider:
- Gate dimensions and weight
- Weight distribution
- Hinge alignment
- Gate post stability
- Motor mounting geometry
- Required opening angle
- Wind exposure
- Operating frequency
- Safety system configuration
- Manufacturer installation requirements
- Ongoing maintenance
Mechanical problems should be corrected before increasing motor force or replacing automation components. For large, heavy or safety-critical installations, assessment by a qualified installer is recommended.
Who Should Prioritise Proper Swing Gate Balance?
Proper balance is relevant to anyone using Swing Gate Automation, including:
- Homeowners with automated driveway gates
- Property managers
- Commercial property owners
- Industrial facilities
- Gate installers
- Automation integrators
- Maintenance technicians
It is particularly important where gates are large, heavy, frequently operated or exposed to significant environmental loads.
How Will Swing Gate Automation Continue to Improve?
Future Swing Gate Automation systems are likely to place greater emphasis on monitoring operating conditions, detecting changes in resistance and providing diagnostic information.
However, improved electronics cannot replace correct mechanical installation. A properly balanced gate will remain an important foundation for efficient and reliable automation.
FAQs
Disconnect or disengage the motor and move the gate manually. It should open and close smoothly without excessive resistance, scraping, dropping or uncontrolled movement
Yes. Excessive mechanical resistance can increase the load placed on the motor and other components, potentially contributing to overheating, gear wear and premature failure
Not necessarily. The gate should first be checked for hinge problems, post movement, excessive weight, poor geometry and other sources of resistance
Hinge alignment is critical because misalignment can increase friction and create twisting forces that make the gate harder for the motor to operate
Yes. Wider opening angles can increase the mechanical load, particularly near the end of travel. The opening angle should match the requirements of the installation and motor
Final Thoughts
A properly balanced swing gate is one of the foundations of reliable Swing Gate Automation.
Hinge alignment, post stability, weight distribution, motor geometry, opening angle and environmental conditions all influence how much load the automation system must handle. When these factors are addressed correctly, the motor can operate more efficiently and with less unnecessary mechanical strain.
Before replacing a motor or increasing force settings, check the gate itself. Correcting the mechanical balance first can help improve reliability, reduce maintenance requirements and extend the service life of the entire automation system.
